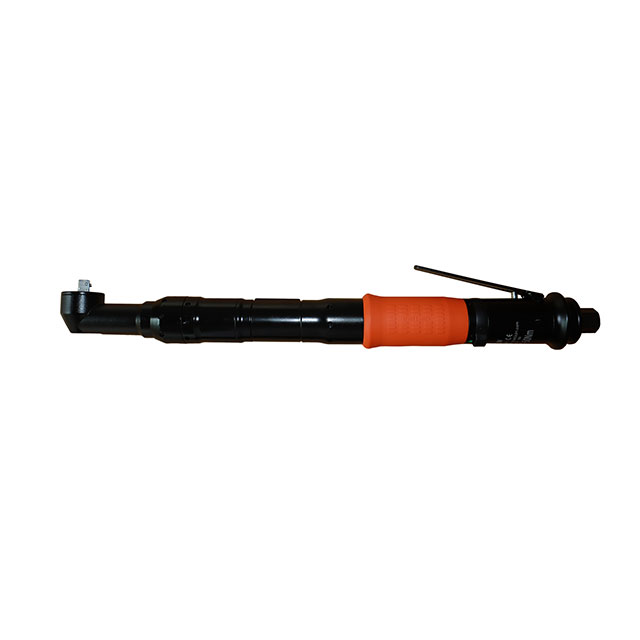

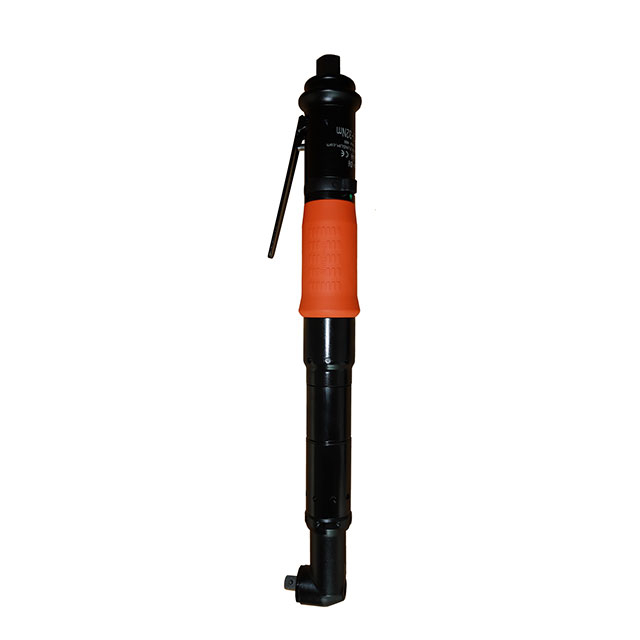

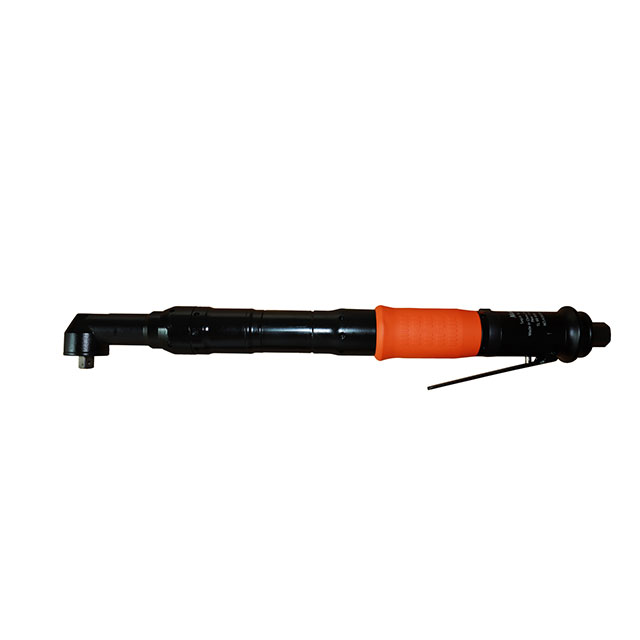

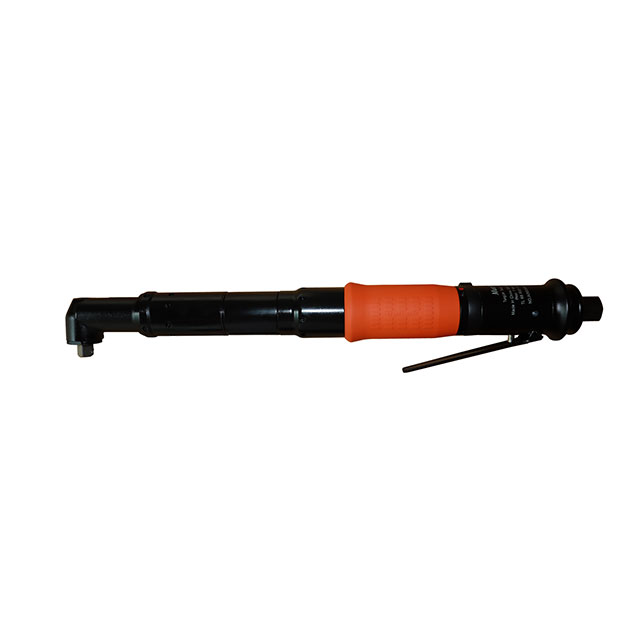

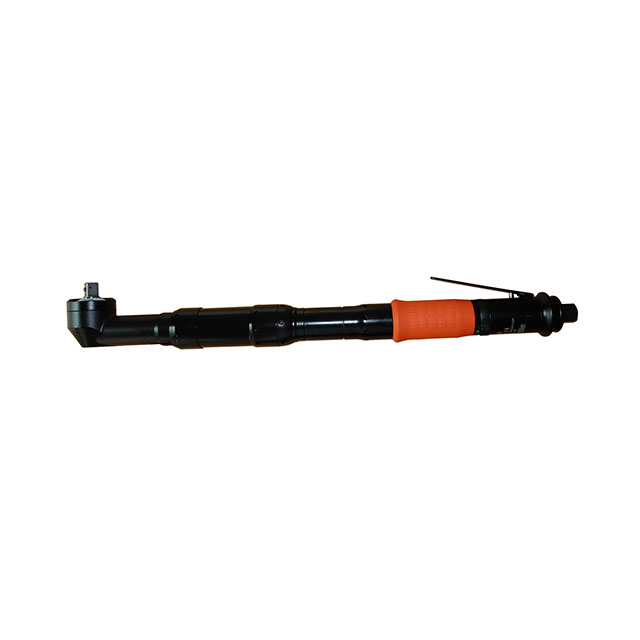

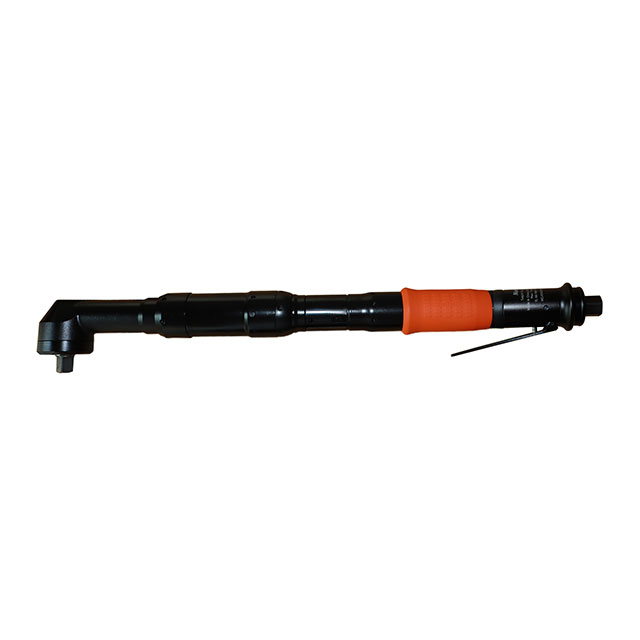

High-torque air nutrunner Segmented Clutch Pneumatic

|

 Operating Instructions

Operators and maintenance personnel must have sufficient physical strength to handle large and heavy power tools correctly: be prepared for possible normal or sudden movements, and be prepared with both hands.

After adjusting the clutch, immediately check if it can be operated correctly.

Do not use when the air pressure drops or wear occurs, as the clutch may not work, causing the tool handle to suddenly rotate.

In the opposite direction of spindle rotation, always safely support tool handles, to reduce the impact of sudden torque reactions during final tightening and initial loosening.

If possible, a cantilever should be used to resist the reaction torque. If it is not possible, it is recommended to use a side handle for torque tools; For angle nut wrenches, it is recommended to use a reaction rod. In any case, we recommend avoiding using various methods to resist reaction forces to avoid torque tools exceeding 4NM; tools with grip torque exceeding 10NM; the angle nut wrench exceeds 60NM.

An open claw shaped nut wrench may crush fingers.

Do not use in confined spaces, do not place your hands between tools and workpieces, especially when loosening them, be careful not to squeeze your hands.
