| Quantity: | |
|---|---|

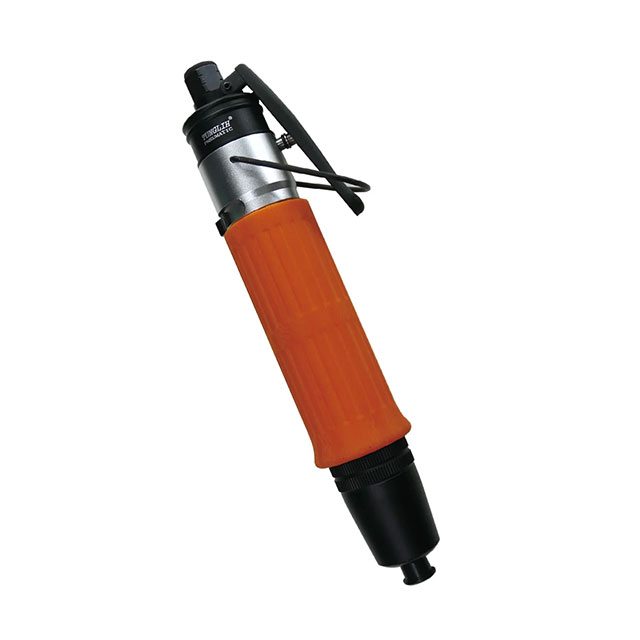

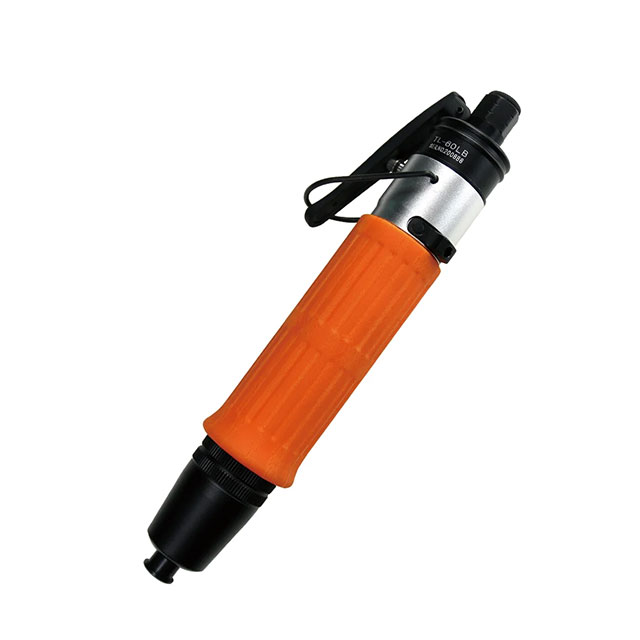

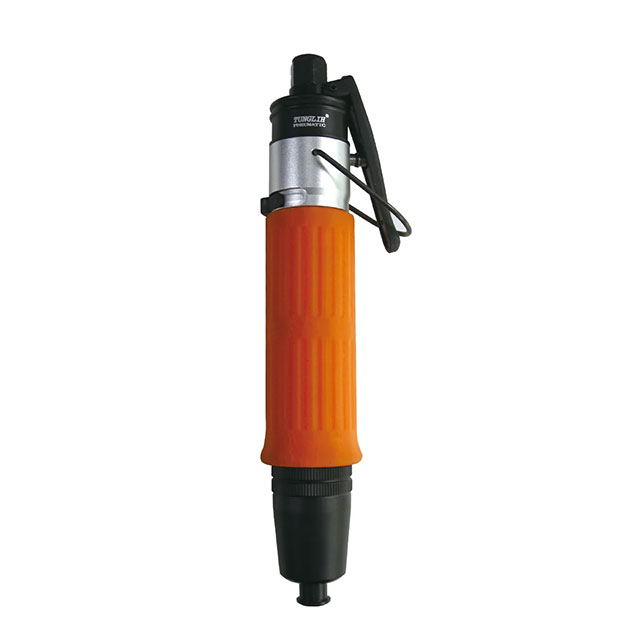

The core of the Pneumatic Screwdriver Orange Series is its high-performance pneumatic system. Engineered with precision, this system delivers a consistent and powerful stream of air to the motor, enabling it to generate high torque and speed. The pneumatic system is also highly responsive, allowing for quick starts and stops, which is essential for efficient assembly work. Whether you're driving a large number of screws in a short period or working on a complex project that requires precise control, the Orange Series' pneumatic system can meet your demands with ease.
In addition to its adjustable torque settings, the Orange Series is equipped with a smart torque limiting feature. This feature automatically stops the screwdriver when the preset torque value is reached, preventing over-tightening and potential damage to the workpiece or the screw itself. This is particularly important in industries where the quality of the assembly is critical, such as in the manufacturing of electronics and medical devices. The smart torque limiting feature not only improves the quality of the work but also reduces the need for rework, saving you time and resources.
The Pneumatic Screwdriver Orange Series is designed with a user-friendly interface that makes it easy to operate. The control buttons are clearly labeled and positioned for easy access, allowing operators to adjust the speed, torque, and other settings without any confusion. The intuitive design of the interface means that even new users can quickly get up to speed and start using the screwdriver effectively. This simplicity in operation helps to increase productivity and reduce the learning curve associated with new tools.
To ensure the longevity of the Orange Series, we have used high-quality and long-lasting components in its construction. The motor, gears, and other internal parts are made from durable materials that can withstand the wear and tear of regular use. This means that you can rely on the screwdriver to perform consistently over an extended period, reducing the need for frequent repairs or replacements. The investment in quality components not only saves you money in the long run but also ensures that your production processes are not disrupted by tool failures.
We understand that different customers have different requirements, which is why the Pneumatic Screwdriver Orange Series offers a range of customization options. You can choose from different handle designs, torque ranges, and accessory kits to tailor the screwdriver to your specific needs. Whether you need a screwdriver with a higher torque for heavy-duty work or a more ergonomic handle for extended use, we can provide a solution that meets your exact specifications. This customization flexibility allows you to get the most out of your Orange Series screwdriver and optimize your assembly processes.
The Pneumatic Screwdriver Orange Series is a top-of-the-line product that offers a combination of high performance, quality, user-friendliness, and customization. It is the perfect tool for businesses looking to boost their productivity and improve the quality of their assembly work. Contact us today to discover how the Orange Series can enhance your operations and drive your business forward.
|
Technical Parameters

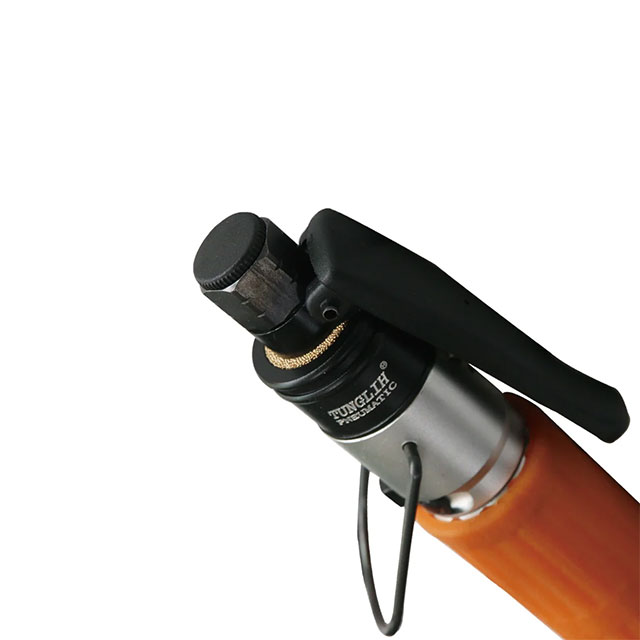

Lever to start pneumatic screwdrivers specification
Model No. | No Load Speed (r.p.m) | Weight (g) | Overall Length (mm) | Diameter (mm) | Air Pressure (Kg/cm²) | Min. Tube Dia. (mm) | Air Consumption (M3/Min) | Torque Range (kgf.cm) | Accuracy | Machine Screw Fastening Capacity | Tapping Screw Fastening Capacity | Screw bit |
TL-S10LB | 1000 | 490 | 210 | 29 | 6.0 | 5.0 | 0.2 | 0.5-2 | ±3% | M1.0-M2.2 | M1.1-M1.7 | Hex 6.35mm |
TL-S20LB | 1000 | 490 | 210 | 29 | 6.0 | 5.0 | 0.2 | 1-8 | ±3% | M1.7-M3.3 | M1.3-M2.7 | Hex 6.35mm |
TL-S30LB | 1800 | 490 | 210 | 29 | 6.0 | 5.0 | 0.28 | 3-17 | ±3% | M2.2-M4.2 | M1.7-M3.2 | Hex 6.35mm |
TL-S35LB | 2200 | 490 | 210 | 29 | 6.0 | 5.0 | 0.28 | 3-20 | ±3% | M2.2-M4.5 | M1.7-M3.5 | Hex 6.35mm |
TL-S38LB | 1800 | 490 | 210 | 29 | 6.0 | 5.0 | 0.28 | 3-25 | ±3% | M2.2-M4.5 | M1.7-M3.5 | Hex 6.35mm |
TL-S40LB | 1000 | 490 | 210 | 29 | 6.0 | 5.0 | 0.28 | 5-30 | ±3% | M2.8-M5.0 | M2.2-M4.0 | Hex 6.35mm |
TL-S45LB | 800 | 490 | 210 | 29 | 6.0 | 5.0 | 0.3 | 8-40 | ±3% | M3.3-M5.7 | M2.7-M4.4 | Hex 6.35mm |
TL-S48LB | 1700 | 810 | 245 | 37 | 6.0 | 8.0 | 0.55 | 5-45 | ±3% | M2.8-M5.8 | M2.2-M4.7 | Hex 6.35mm |
TL-S50LB | 1400 | 810 | 245 | 37 | 6.0 | 8.0 | 0.55 | 7-50 | ±3% | M2.9-M6.0 | M2.6-M4.9 | Hex 6.35mm |
TL-S55LB | 1000 | 810 | 245 | 37 | 6.0 | 8.0 | 0.55 | 7-65 | ±3% | M2.9-M6.4 | M2.6-M5.1 | Hex 6.35mm |
TL-S60LB | 550 | 810 | 24S | 37 | 6.0 | 8.0 | 0.55 | 15-95 | ±3% | M4.1-M7.0 | M3.1-M6.0 | Hex 6.35mm |
TL-S65LB | 300 | 810 | 245 | 37 | 6.0 | 8.0 | 0.6 | 30-180 | ±3% | M5.1-M8.0 | M4.1-M7.0 | Hex 6.35mm |
TL-S68LB | 250 | 810 | 245 | 37 | 6.0 | 8.0 | 0.6 | 50-250 | ±3% | M6.1-M9.0 | M5.1-M8.0 | Hex 6.35mm |
|
Product Uses
Here are specific application scenarios of pneumatic screwdriver：
1. For Factory Assembly Lines
2. For Mechanical Assembly
3. For Furniture Production
4. For Automotive assembly
