Turning a screwdriver is more than just applying old-school wrist motion or electric rotation. Whether it’s a small handheld tool or an industrial-grade pneumatic or electric model, the way you turn a screwdriver determines precision, efficiency, and safety. It’s especially important when you’re assembling consumer electronics, vehicles, or machinery—where torque consistency and ergonomic support matter.
Dongli Industrial Equipment (Shenzhen) Co., Ltd., is a global manufacturer and R&D leader of screwdriver systems—pneumatic, electric brushless, micro-tool, and nutrunners. With cutting-edge torque control, diverse form factors, and international certifications, TUNGLIH screwdrivers illustrate how proper turning techniques and tool selection deliver superior results in modern production lines.
In this article, we’ll explore what it means to turn a screwdriver correctly—from physical technique to industrial tool mechanisms. We’ll compare manual versus powered, the features of TUNGLIH models, and connect everything to today’s trends, ensuring readers understand the keyword screwdriver in both practical and industrial senses.
At its simplest, turning a screwdriver means aligning the tip into the screw head and rotating it to drive or remove it. But key principles govern performance:
Alignment: The driver bit must be perpendicular to the screw for best grip, reducing slippage and cam-out.
Torque Control: Apply controlled force; too little won’t turn the screw, too much might strip it. Front-heavy or torque-limiting tools help.
Speed Management: Manual turning is slow but precise; powered tools speed up the job but require attention to pressure and reaction torque.
Ergonomics: Repetitive turning strains the wrist—thus torque wrenches, pistol grips, or counterbalanced systems matter in serious work environments.
In industrial settings, turning a screwdriver becomes a repeatable motion integrated into an entire work-cell, with torque analytics, cycles-per-minute metrics, and human-machine interaction considerations. Let’s see how that translates in the hands of TUNGLIH tools.
Manual screwdrivers are the original form: a simple handle, a shaft, and a bit that fits into the screw. They offer total tactile feedback—your fingers control torque and speed. However, they’re limited in efficiency, especially when dozens or hundreds of screws must be tightened.

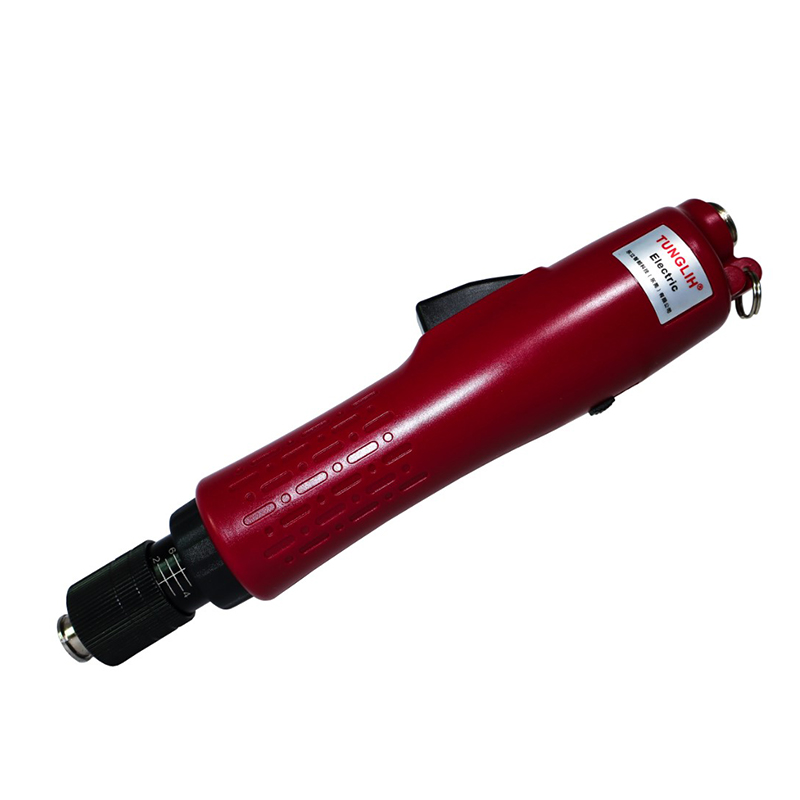

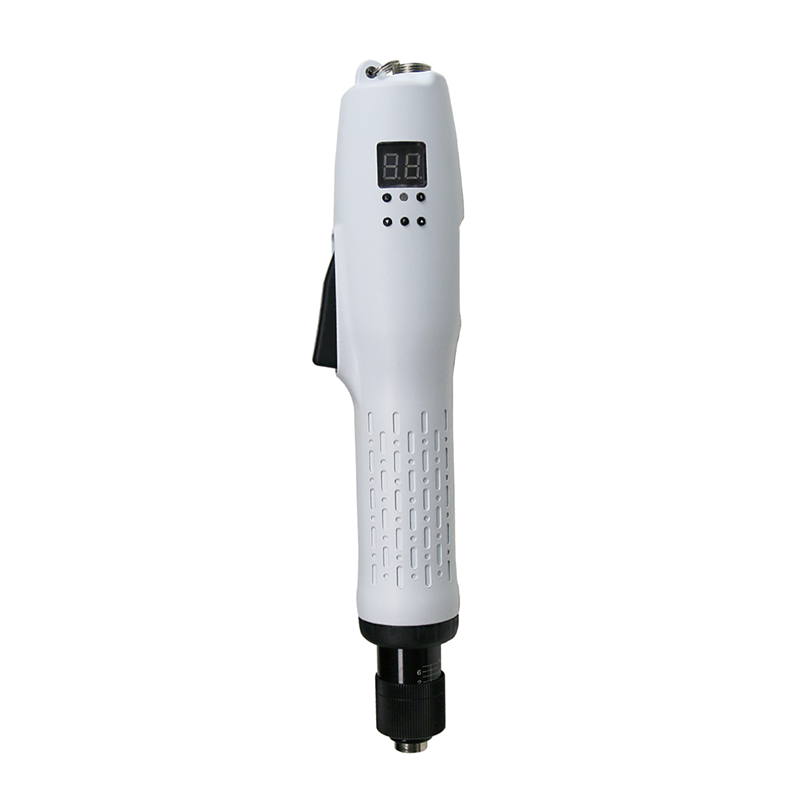

TUNGLIH’s brushless electric screwdrivers deliver up to ~25 N·m of torque, powered by a motor instead of air. You pull a trigger or push a button, and the tool turns with consistent RPM. Torque limiters in the controls cut power at a set point to prevent overtightening—so turning becomes safer and more automated.
Pneumatic models powered by compressed air excel in torque and speed. With configurations like inline, pistol, or angle-head, operators twist the trigger and the air motor spins until clutch disengagement, achieving a set torque. Torque accuracy within ±3% ensures uniform tightening across cycles. Turning a pneumatic screwdriver becomes intuitive, only requiring trigger control and tool guiding.
Powered screwdrivers turn via internal mechanisms:
Motor / Air Motor: It spins a rotating shaft when activated.
Gearbox / Clutch Mechanism: Converts rotation into torque; switches off or slips when target torque is reached.
Trigger or Lever Valve: Operator control to start and stop rotation.
Ergonomic Housing: Designed for balance and minimized wrist torque, especially in repetitive tasks.
Torque Settings: Dial selections or digital presets enable customized torque per application.
Here’s a comparison table of TUNGLIH screwdriver types and how they behave when you turn them:
| Type | Power Source | Torque Range | Speed Range | Torque Control | Trigger Response | Typical Weight |
|---|---|---|---|---|---|---|
| Manual | Human muscle | Varies by hand/bit | Slow, manual RPM | Manual control | Manual twist | 200–500 g |
| Electric (brushless) | Rechargeable battery or cord | 0 – 25 N·m | 0–3,000 RPM | Electronic limiters | Instant; push button | 600–1,200 g |
| Pneumatic inline | Compressed air | 0.5–250 kgf·cm | 300–2,200 rpm | Mechanical + torque clutch | Trigger + bit alignment | 500–1,200 g |
When turning a powered screwdriver, the goal is to manage control: align the bit, squeeze the trigger gradually, feel the result, and release precisely when the torque limit hits. In high-speed production, torque-limiting means you can focus on placement and positioning—turning becomes a smooth motion that finishes exactly where needed.
Turning a screwdriver fast and reliably requires an ergonomic technique that prioritizes both efficiency and user safety. Proper wrist positioning is crucial; the wrist should be used to hold the tool stable, while minimizing twisting motions by adjusting the elbow and torso. This approach helps reduce strain and prevents injuries during prolonged use.
The choice of grip style also plays a significant role in ergonomics. Whether opting for a straight or pistol handle, the design can impact comfort and performance. TUNGLIH offers low-vibration grips and rubberized coatings, which enhance torque transfer without compromising on grip security. These features are particularly useful in preventing slippage and ensuring precise control.
In high-production environments, the use of auxiliary arms and balancers can significantly enhance ergonomic handling. These external supports effectively remove the tool’s weight from the operator’s wrist, allowing for accurate and fatigue-free operation. By leveraging these supports, operators can maintain a steady hand and focus on the task at hand.
Proper turning technique begins with a secure grip and precise alignment of the bit with the screw. Stabilizing the motion using core and arm muscles ensures smooth operation. The trigger should be pressed gently to initiate the turning of the shaft and released once the desired torque is achieved. This method not only ensures efficiency but also minimizes the risk of injuries and slippage, making it an essential practice for both professional and DIY users.
Dongli’s TUNGLIH lineup exemplifies turning excellence in industrial operation. Here’s a breakdown of series and how they enhance turning:

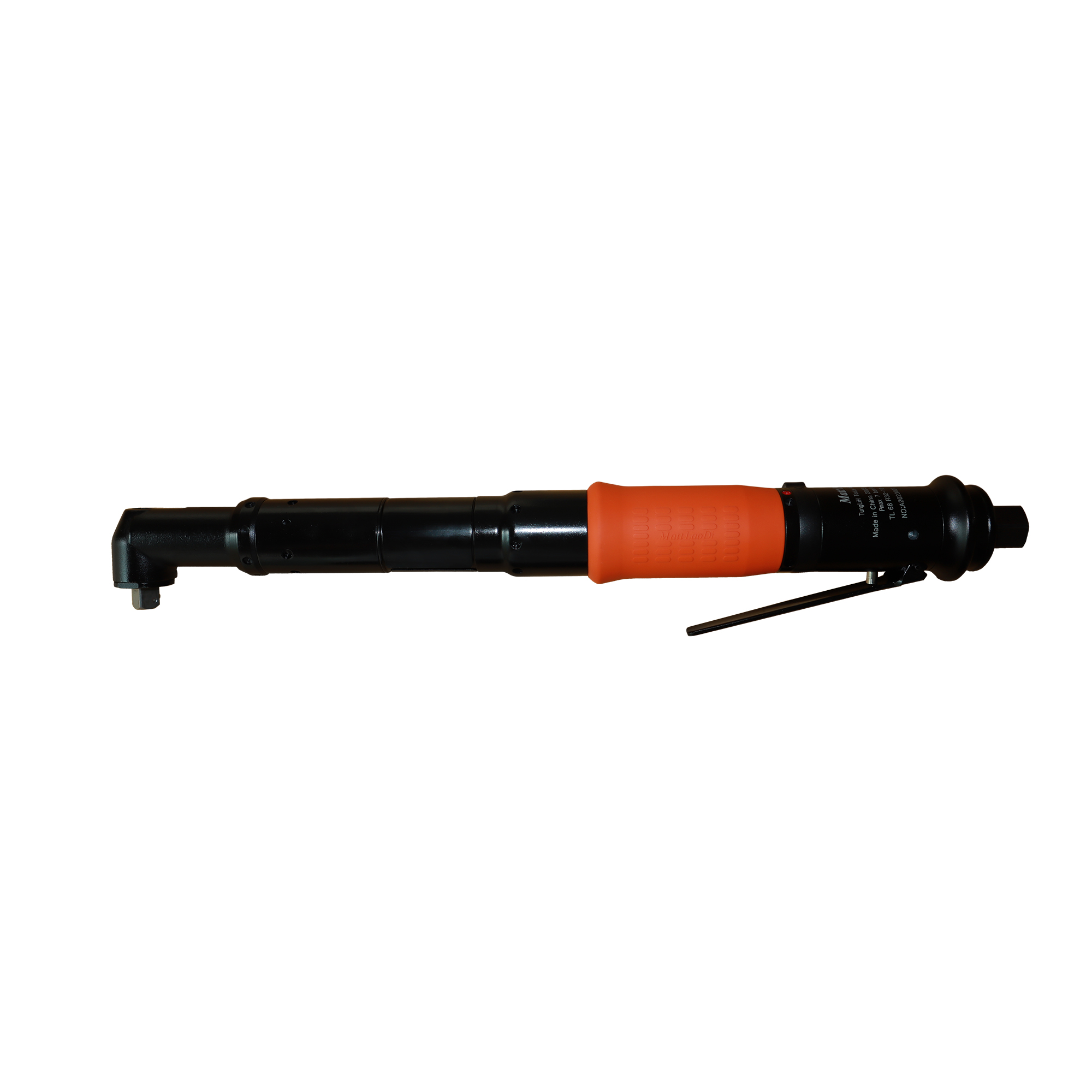

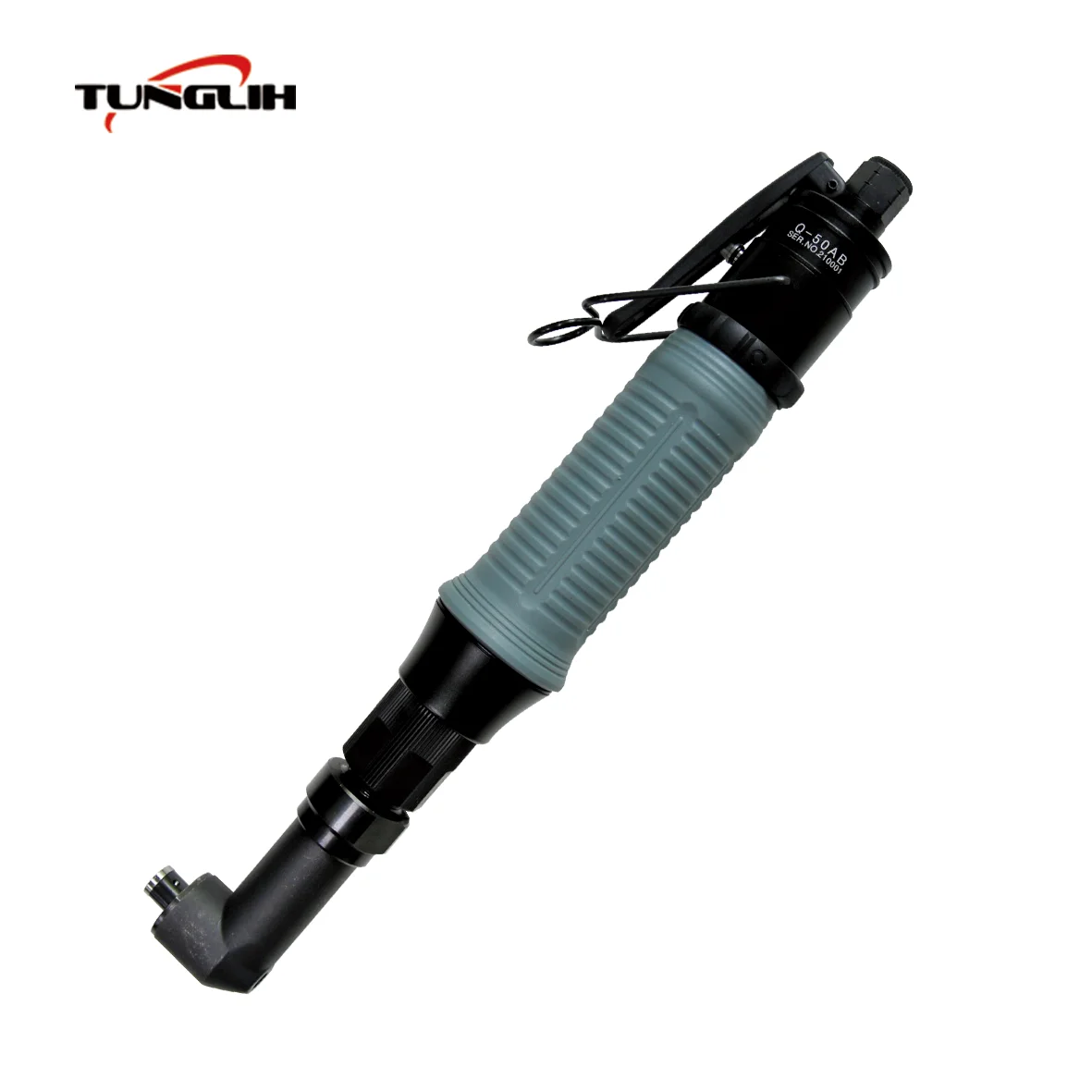

The elbow design is excellent for confined space turning. Torque options from 0.5–180 kgf·cm give flexibility for tiny screws or heavy fasteners. The ±3% accuracy ensures that every turn is uniform. The angled head allows straight elbow movement—a more natural turning posture.

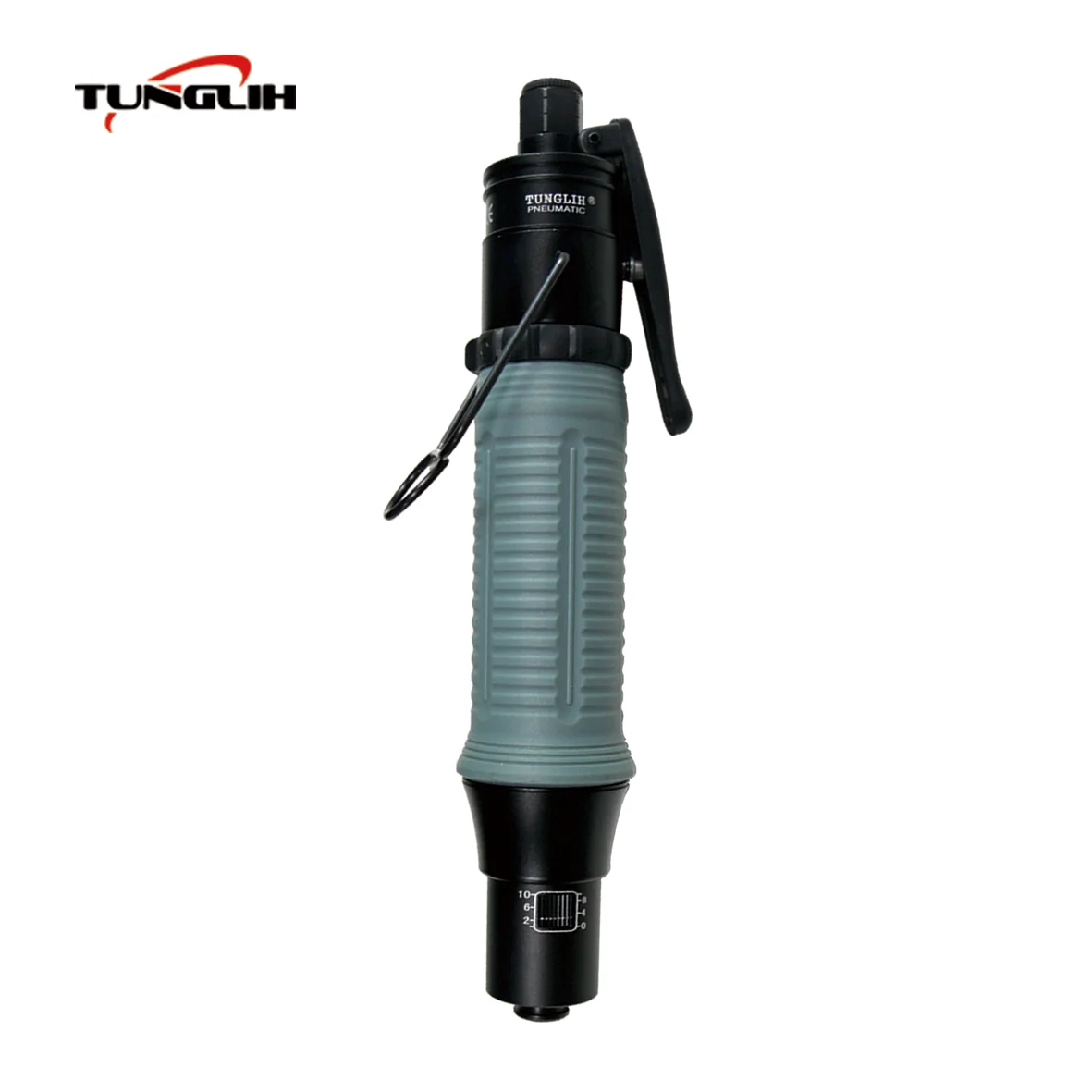

These are quintessential traditional designs: long shafts with inline alignment. They’re balanced for operator posture and enable consistent turning with minimal wrist rotation. The adjustable clutch makes torque setting easy, meaning every screw gets the right turn strength.

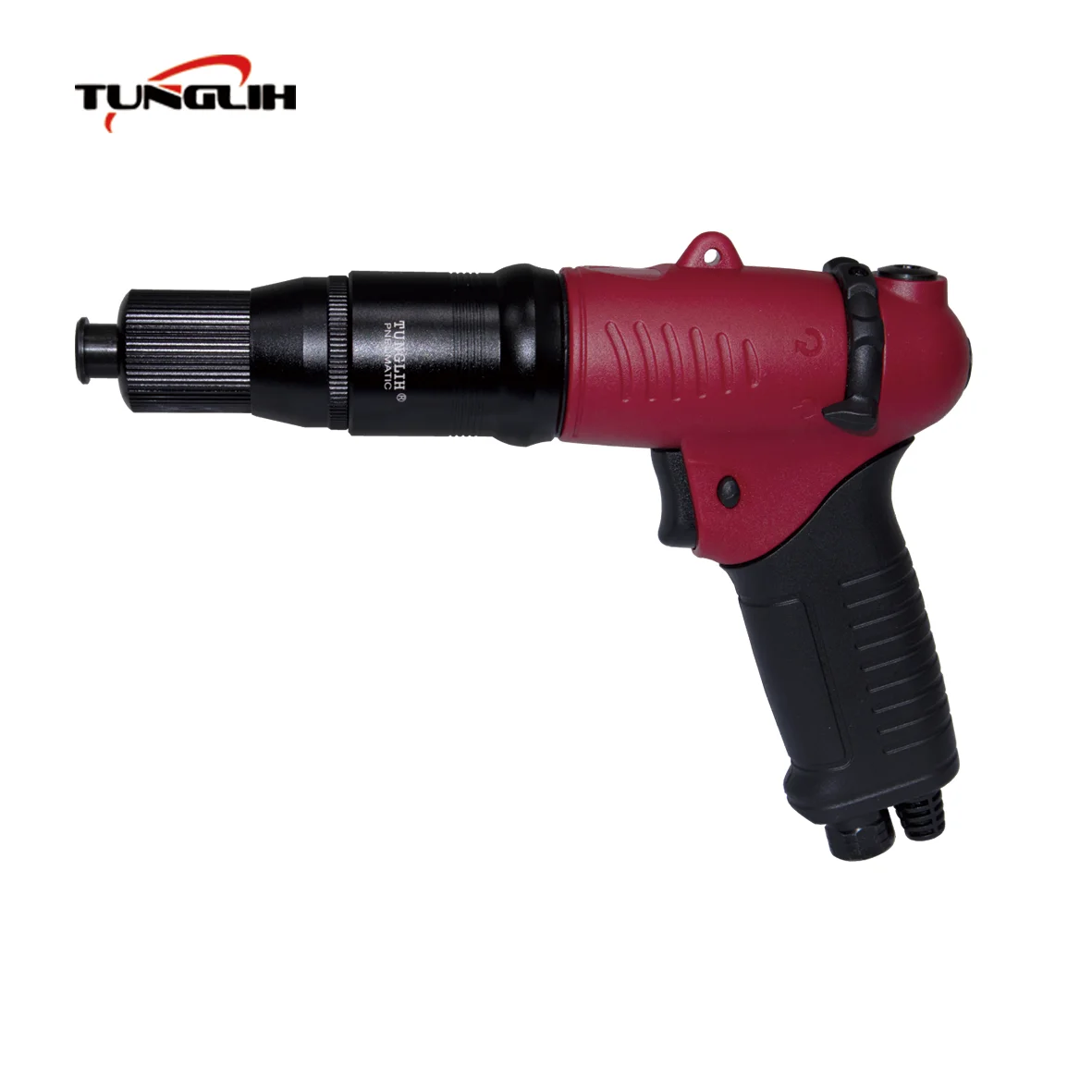

With pistol-style ergonomics, these screwdrivers fit naturally in the hand. When turning—for heavier tasks or long assembly runs—the grip remains comfortable and strong. Trigger access is direct, and trigger travel is calibrated to give immediate response, ideal for rapid turning cycles.
These tools are engineered for lower noise and air consumption. Turning them creates less audible disturbance—a plus in modern factories—and saves compressed air, converting every turn into a more sustainable operation.
Heavy-duty metal-body designs suit robust environments where other tools might get banged around. It’s about durability, consistent turning under stress, and resistance to wear.
All of these series support industrial turning not just in ergonomic design, but in torque predictability and form factor—reducing errors and increasing throughput.
The integration of IoT technology into screwdrivers is revolutionizing how we approach fastening tasks. Manufacturers now expect detailed torque data collection during each focused turn. Wireless-enabled TUNGLIH screwdriver options are at the forefront of this trend, tracking angle, torque, cycles, and even operator activity. These smart tools generate comprehensive reports that ensure every turn hits the specified requirements, providing critical traceability for quality control. This level of data collection not only enhances precision but also allows for real-time adjustments and improvements in manufacturing processes.
Operator-assisted systems are another significant trend in the world of screwdrivers. These systems provide visual or auditory feedback to operators, indicating when a turning cycle is complete. For example, a light or buzzer can signal that the required torque has been achieved, ensuring consistent results. Additionally, smart anti-vibration systems are becoming more prevalent, reducing operator fatigue and enhancing comfort. These systems use advanced materials and design principles to minimize vibrations, making long hours of use more manageable.
In an era where sustainability is a key concern, eco-friendly tools are gaining traction. Modern screwdrivers leverage lighter internal diaphragms and improved clutches, ensuring that every turn uses less compressed air. This not only reduces operational costs but also aligns with environmental goals by minimizing energy consumption. Additionally, sound-dampening housing is becoming a standard feature, promoting comfortable turning in close quarters and reducing noise pollution in the workplace.
The rise of collaborative robots, or cobots, is transforming assembly lines. In cobotic setups, screwdrivers are mounted on robot arms, turning the fastening process into an automated procedure synchronized with placement cycles. TUNGLIH’s compact inline tools are particularly well-suited for this application, providing precise and compact turning actions. This integration of robotics and screwdriving technology enhances efficiency and consistency, making it ideal for high-volume production environments.
Modular turning platforms are another exciting development in the field. These platforms feature hot-swappable heads, allowing technicians to switch between different turning angles (such as 90°, pistol, and inline) using a single handle. This adaptability enhances productivity by reducing the need for multiple tools and minimizing changeover times. Technicians can quickly adapt to different tasks without sacrificing precision or efficiency.
Modern screwdrivers are increasingly user-friendly, with customizable interfaces that allow operators to set torque limits, speed, and other parameters according to specific job requirements. Touchscreen displays and intuitive controls make it easy for users to adjust settings on the fly, ensuring optimal performance for each task. This level of customization not only improves efficiency but also enhances user satisfaction and adoption rates.
Safety is a top priority in any industrial setting, and modern screwdrivers are incorporating advanced safety features to protect operators. These include automatic shut-off mechanisms when the desired torque is reached, preventing over-tightening and potential injury. Additionally, some tools feature ergonomic designs that reduce the risk of repetitive strain injuries, ensuring long-term comfort and health for users.
Turning a TUNGLIH screwdriver effectively, whether pneumatic or electric, involves a series of straightforward steps designed to ensure precision, safety, and efficiency. Here’s a condensed guide broken down into five essential steps:
Positioning and Alignment
Align Bit and Tool: Place the driver bit deeply into the screw head, ensuring a 90° angle to prevent cam-out. Hold the tool firmly and support your wrist and forearm. If available, use an auxiliary arm or counterbalance to reduce strain.
Turning Process
Start Turning: Gently squeeze the trigger while maintaining alignment. With manual torque clutches, feel for the tool to shut off automatically. For brushless electric models, listen for the cutoff beep. With pneumatic models, you’ll feel a brief stall before the tool stops.
Release Trigger Immediately: Once the desired torque is achieved, release the trigger to prevent overtightening or dwell-on torque.
Inspection and Logging
Inspect the Result: Visually confirm that the screw is flush, not recessed or protruding, and properly aligned. Ensure that the turning process is consistent across all screws in a batch.
Post-Use Care
Pneumatic Tools: After use, drain the moisture filter, add a light oil to the tool, and clean the housing to prevent rust and ensure longevity.
Electric Tools: Wipe down the housing, check for bit wear, Regular maintenance ensures the tool remains in optimal condition for future use.
By following these steps, you can ensure that your TUNGLIH screwdriver operates efficiently and safely, delivering precise results every time.
In the precision-driven world of electronics production, where tasks like assembling smartphone frames or printed circuit boards (PCBs) are common, the choice of screwdriver is critical. TUNGLIH’s Q (elbow) or micro inline torque screwdrivers are specifically designed for these delicate tasks. Operators work with extremely low torque settings, typically in the 0.5–3 kgf·cm range, ensuring that components are fastened securely without causing damage. The clutch mechanism is highly sensitive, stopping immediately after each turn to prevent overtightening. If the screwdriver is smart-enabled, it can also record data for quality control and traceability, ensuring that every screw is turned to the exact specification.
The automotive industry demands speed and precision, especially when assembling vehicles on a production line. Operators often use pistol or inline electric screwdrivers, which are designed to handle the high volume of screws required. These tools can turn dozens of screws per minute, with torque ranges typically between 30–80 kgf·cm. The clutch accuracy is crucial, as it prevents stripped threads and ensures consistent fastening. To reduce operator fatigue and improve efficiency, auxiliary arms are often used to handle the tool’s mass, allowing operators to turn screws quickly and accurately without strain or slippage.
In furniture factories, where tasks involve bolting pre-drilled wooden panels together, the choice of tool can significantly impact productivity and quality. Pistol screwdriver handles are a popular choice, as they reduce the number of turning repetitions needed. These tools are designed with torque limits that protect fragile wood from damage, ensuring that screws are fastened securely without causing splits or cracks. The turning cycle is both audible and ergonomic, with a clear trigger pull and tool stop for each screw. This design provides operators with plenty of flexibility between actions, making the process efficient and comfortable, even during long shifts.
In the highly regulated environment of medical device manufacturing, precision and reliability are paramount. TUNGLIH’s precision screwdrivers, often with torque settings in the 5–20 kgf·cm range, are ideal for tasks such as assembling pacemakers or orthopedic implants. These tools often come with smart features that log each turn, providing traceability and ensuring compliance with strict quality standards. The clutch mechanisms are highly accurate, stopping precisely at the set torque to prevent any risk of overtightening, which could compromise the integrity of the device.
The aerospace industry requires tools that can handle high torque while maintaining extreme precision. TUNGLIH’s heavy-duty pistol or inline screwdrivers, with torque ranges up to 200 kgf·cm, are designed to meet these demands. These tools are used for tasks such as assembling aircraft engines or securing critical structural components. The clutch accuracy is critical, as it ensures that every screw is fastened to the exact specification, preventing any risk of failure. Additionally, these tools are often equipped with smart features that log data for quality control and traceability, ensuring that every fastening task meets the highest standards of precision and reliability.
Turning a screwdriver is more than manual wrist motion—it’s a controlled, measurable, repeatable action essential to quality assembly. Whether using a small manual driver or a high-tech smart model, the focus is on torque precision, alignment, ergonomics, and traceability.Dongli’s TUNGLIH screwdrivers—from micro inline to pistol, elbow, eco-series, and metal—address every turning scenario. With torque ranges from 0.5–250 kgf·cm, ±3% accuracy, ergonomic housing, and smart capabilities, turning becomes a safe, fast, and consistent activity on modern production lines.
Connecting to current trends—IoT data logging, sustainability, AR integration, and collaborative robotics—turning a screwdriver isn’t just tightening fasteners; it’s part of the digitized, efficient, human-centric factories of tomorrow.
