Ready to learn how a pneumatic screwdriver works? You’re in the right place! Whether you’re a DIY enthusiast or a professional looking for efficiency, understanding the basics of a pneumatic screwdriver is key. From its powerful air motor to easy-to-use controls, we’ll explore how this tool can transform your projects. Let’s dive in and discover the power of pneumatic tools together!
A pneumatic screwdriver is a handheld tool. It uses compressed air to drive screws in or out quickly. This tool changes air pressure into mechanical force, turning the screwdriver head to complete fastening. We often see them in assembly lines and workshops. They handle repetitive fastening tasks where speed and torque matter.
Unlike manual tools, they do not need hand force to tighten screws. Operators can finish tasks faster. This tool keeps cool during long use since it does not generate much heat while working. It remains a reliable companion for technicians who need consistency in every operation.
| Feature | Pneumatic Screwdriver | Electric Screwdriver | Manual Screwdriver |
|---|---|---|---|
| Power Source | Compressed air | Electricity | Human hand |
| Speed | High (1000-2800 r/min) | Moderate | Slow |
| Heat Generation | Low | Moderate to high | None |
| Torque Stability | Affected by air pressure | Electronic control, stable | Controlled by hand strength |
| Weight | Lightweight | Varies | Very lightweight |
| Energy Efficiency | Uses air, energy-saving | Uses electricity | No energy use |
| Usage Duration | Long, continuous | Limited by battery or heat | Depends on user endurance |
They outperform manual screwdrivers when tightening hundreds of screws each day. Compared to electric models, pneumatic types maintain speed without overheating. They require a stable air supply to function well, while electric ones need a battery or cord.
They work across automotive, electronics, furniture, and machinery assembly industries. Workers use them to assemble car parts, build circuit boards, or fasten panels in manufacturing plants. They can remove screws during repair jobs in maintenance shops. In electronics factories, they assemble devices without damaging parts due to precise torque. In heavy industries, they handle robust fasteners in structural components. Their efficiency and lightweight design make them essential on any fast-paced production line.
Pneumatic screwdrivers use compressed air to create force. The air comes from a compressor. It moves through hoses into the tool and powers it instantly. Inside, the compressed air converts into mechanical energy. This process begins when air pushes against vanes or blades inside the air motor. The motor spins, transferring the air’s energy to the tool’s moving parts.
The air motor drives the screwdriver head to rotate. As the motor spins, it turns the spindle and screwdriver bit. The tool can tighten or loosen screws fast while using consistent power.

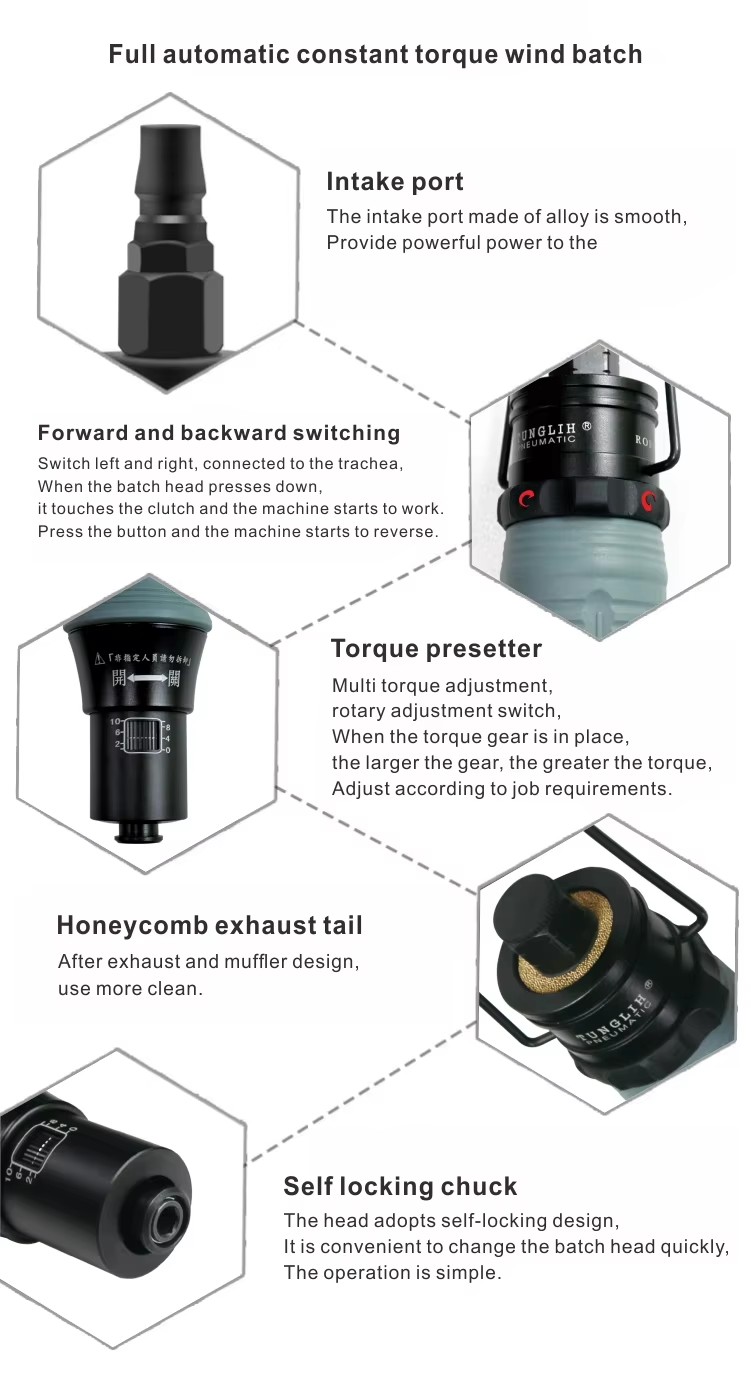

The tool contains the following core components. Each part ensures reliable, continuous operation.
Intake port: The intake port, made of alloy, is smooth and provides powerful power.
Forward and backward switching: Switch left and right to connect it to the air hose. When the bit head presses down, it touches the clutch, and the machine starts working. Press the button, and the machine begins to reverse.
Torque presetter: The rotary adjustment switch allows for multi-torque adjustment; the larger the gear in place, the greater the torque, enabling customization according to job requirements.
Honeycomb exhaust tail: The exhaust and muffler design ensures a cleaner operation.
Self locking chuck: The head features a self-locking design, making it easy to quickly change the bit, and the operation is simple.
Compressed air stores energy. When released, it expands and pushes against the motor’s vanes. This action spins the tool rapidly. The air’s energy creates high speed and torque without overheating the tool. It keeps working at a stable speed, even during long shifts.
Industries prefer pneumatic screwdrivers because they maintain speed and torque in repetitive tasks. They handle tough screws and high-volume assembly without power loss.They use compressed air efficiently, making them energy-saving tools. These features help manufacturers complete tasks quickly while reducing fatigue for workers.
A pneumatic screwdriver has several key parts. The air motor converts compressed air into mechanical power. The gear system adjusts speed and torque. The handle provides a comfortable grip. These components work together to deliver precise control and power.
The air supply is crucial. Connect the screwdriver to an air compressor using a hose. Ensure the hose is free of kinks and leaks. Proper air pressure, usually around 90 psi, ensures optimal performance. Check the pressure regulator to maintain consistent airflow.
The open impact frame is a unique feature. It allows the tool to deliver high torque in a compact design. The frame absorbs and redirects impact forces, reducing wear on internal parts. This structure enhances durability and efficiency, making it ideal for heavy-duty tasks.
Lubrication is essential for longevity. Pneumatic tools require regular oiling to prevent rust and corrosion. Use a mist lubricator to ensure consistent oil distribution. Clean the tool regularly to remove dust and debris. Regular maintenance, including checking for wear and replacing parts as needed, ensures reliable performance.
Workers need a clean, dry floor before using a pneumatic screwdriver. Slips can happen if there is water or oil. We recommend wiping the area and removing clutter. It helps to wear protective gear. Safety goggles protect eyes from debris. Gloves shield hands if the tool kicks or slips.
The workspace must stay organized. Place tools within reach to reduce bending and twisting. Keep hoses arranged to prevent trips. This preparation keeps users focused while working.
The screwdriver needs a bit that fits the screw head exactly. Using the wrong bit may damage the screw or slip during fastening. Users pick a bit from the kit or storage box. If unsure, they can match the bit to the screw before starting.
Adjust torque settings based on the screw size and material. High torque may strip soft materials. Low torque may leave screws loose. Torque can be set using a ring or dial on the tool. Some tools use a manual adjustment ring. Others use a push-button system for faster changes.
Connect the air hose only when ready to start work. Align the hose fitting with the tool’s inlet, press firmly, and twist to lock. Check for air leaks. Listen for hissing sounds. If air escapes, detach the hose and check the O-rings or fitting for damage.
The tool has a selector for forward or reverse motion. Push it to forward to drive screws in. Switch to reverse to remove them. Users check the direction before placing the tool on the screw. This avoids stripping or damaging the fastener.
Align the bit with the screw. Hold the tool firmly using both hands. One hand grips the handle, while the other steadies the front if needed. Press the trigger or push the tool against the screw. The screwdriver will start rotating, driving the screw into the material.
Lift the tool after the screw tightens. Move to the next screw location. Repeat the process without rushing. Maintain consistent speed for safety and accuracy. Keeping the workflow steady reduces fatigue. It prevents tool drops and helps users complete tasks faster while avoiding mistakes.
In simple terms, it is divided into the following steps： 1. Install the connector, then connext to the air compressor, and keep the air pressure of the connexting gas pipe at 6kg/cm², install the screw bit
2. This can be adjusted forward and reverse, that is, it can lock the screw and loosen the screw
3.If need to adjust the torque, can disassemble the torque sheath and rotate to adjust the torque size. The larger the scale number, the greater the torque.
Users should wear protective goggles to shield eyes from flying debris. Gloves protect hands from vibration and sharp edges during work. Earplugs may help if the tool produces high noise in a confined area.
Loose clothing can catch on moving parts. It may pull a user toward the tool, causing injury. Remove rings, watches, and bracelets before work. Long hair should be tied back, keeping it away from the tool.
Air hoses must stay clear of sharp edges and heat sources. We check them for leaks before use. Never pull or yank the hose to move the tool. Doing so can damage the fitting and reduce airflow.
| Air Hose Care Tips | Actions to Take |
|---|---|
| Check for Leaks | Inspect visually, listen for air |
| Keep Away from Heat/Edges | Route hoses safely |
| Avoid Pulling the Hose | Move the tool by hand |
| Use Hose Reels if Available | Prevent tangling and damage |
Disconnect the tool before maintenance or bit changes. Shut off the air supply, then remove the hose gently. Never disconnect the hose while the tool is under pressure. We keep our hands away from the trigger during disconnection. This prevents accidental activation.
Clamps stabilize the workpiece, preventing movement during fastening. This helps align screws properly. It reduces the risk of slipping, which can damage the material or the bit. We recommend using a vise for larger parts. Small pieces may need clamp blocks or edge clamps to keep them steady.
Stand with feet shoulder-width apart for balance. Hold the tool firmly using both hands when needed. Keep wrists straight to avoid strain during repetitive work. Position the tool at the correct angle to the screw. This ensures consistent torque and prevents bit slippage.
After finishing, wipe the tool clean using a cloth. Disconnect the air hose and coil it properly. Store the pneumatic screwdriver in a dry, cool place. Keep it away from dust and moisture. Use a bracket or tool box for organized storage. This keeps the tool ready for the next job.
When choosing a pneumatic screwdriver, consider key factors like torque, speed, and handle type. Torque determines the power, while speed affects how fast the screwdriver operates. Handle types include pistol and inline, each offering different levels of control and comfort.
Matching the tool to the application is crucial. For heavy-duty tasks, a high-torque screwdriver is essential. For precision work, a lower torque with higher speed is preferable. The right tool ensures efficiency and reduces the risk of damage.
For assembly lines, high-torque, high-speed screwdrivers with pistol handles are ideal. They offer power and control needed for repetitive tasks. In small workshops, inline screwdrivers with adjustable torque are better. They provide flexibility for various tasks and are easier to maneuver in tight spaces.
| Factor | Description |
|---|---|
| Torque | Power needed for the task. High torque for heavy-duty, low torque for precision. |
| Speed | How fast the screwdriver operates. High speed for efficiency, lower for control. |
| Handle Type | Pistol handles offer power and control. Inline handles provide flexibility. |
By considering these factors, you can choose a pneumatic screwdriver that meets your specific needs, whether for an assembly line or a small workshop.
A: Pneumatic screwdrivers offer higher torque and consistent power, making them ideal for heavy-duty tasks. They are also lighter and produce less vibration. However, electric screwdrivers are more portable and don’t require an air compressor.
A: Most pneumatic screwdrivers operate efficiently at 90 PSI. Check the tool’s manual for specific recommendations. Adjusting the pressure regulator ensures optimal performance and prevents damage.
A: Signs include reduced power, unusual noises, or air leaks. Regular checks of the air hose, filter, and lubrication system can prevent issues. A mist lubricator helps maintain consistent oil distribution.
A: Yes, pneumatic screwdrivers are well-suited for heavy-duty assembly. Their high torque and durability make them ideal for repetitive and demanding tasks, such as in automotive or industrial settings.
A: Common issues include air leaks, clogged filters, and worn parts. Fixing air leaks involves checking and replacing hoses. Cleaning or replacing the air filter improves airflow. Worn parts should be replaced to maintain performance.
Understanding how a pneumatic screwdriver works can transform your projects, making them more efficient and precise. From its powerful air motor to adjustable torque settings, this tool is a game-changer. Whether you’re working on an assembly line or in a small workshop, choosing the right pneumatic screwdriver is key. Consider factors like torque, speed, and handle type to match your needs.
By leveraging the right tools and techniques, you can enhance productivity and achieve professional results. Dongli Industrial Equipment (Shenzhen) Co., Ltd. is your go-to partner for reliable pneumatic tools. Their extensive product line and customer support ensure you get the best for your projects.
