Our EA Series Pistol-Powered Pneumatic Torque Wrenches are engineered for industrial-grade fastening tasks, delivering reliable torque output and exceptional durability. Covering a torque range from 16Nm to 450Nm, these tools are compatible with M6 to M20 bolts, making them ideal for automotive, machinery assembly, and heavy-duty maintenance applications.
Designed with an ergonomic pistol grip, each wrench ensures comfortable handling and precise control during operation. The lightweight design (0.9kg to 4.2kg) reduces operator fatigue, while high idle speeds (3300 to 8500 r/min) enable efficient work cycles. With a compact body length ranging from 165mm to 220mm, these tools excel in tight spaces where accessibility is critical.
Built for long-term use, our pneumatic wrenches feature robust construction and low air consumption (15 to 49 cfm), optimizing energy efficiency. The standardized inlet sizes (1/4" to 3/8") and trachea inner diameters (8mm to 13mm) ensure seamless integration with existing air systems. Whether you’re performing precision assembly or heavy-duty disassembly, the EA Series provides consistent performance, enhanced productivity, and reliable results for professional industrial environments.

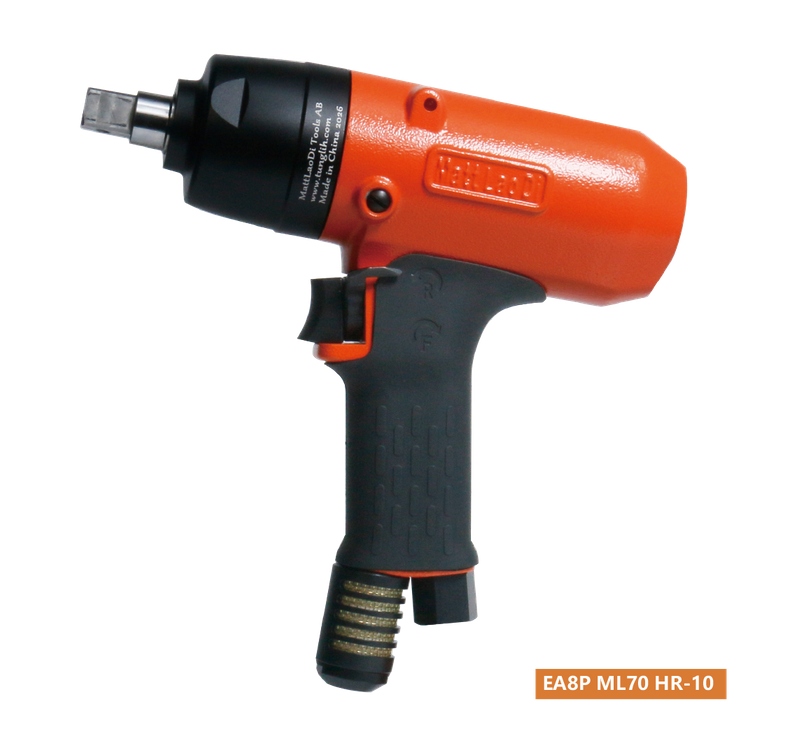

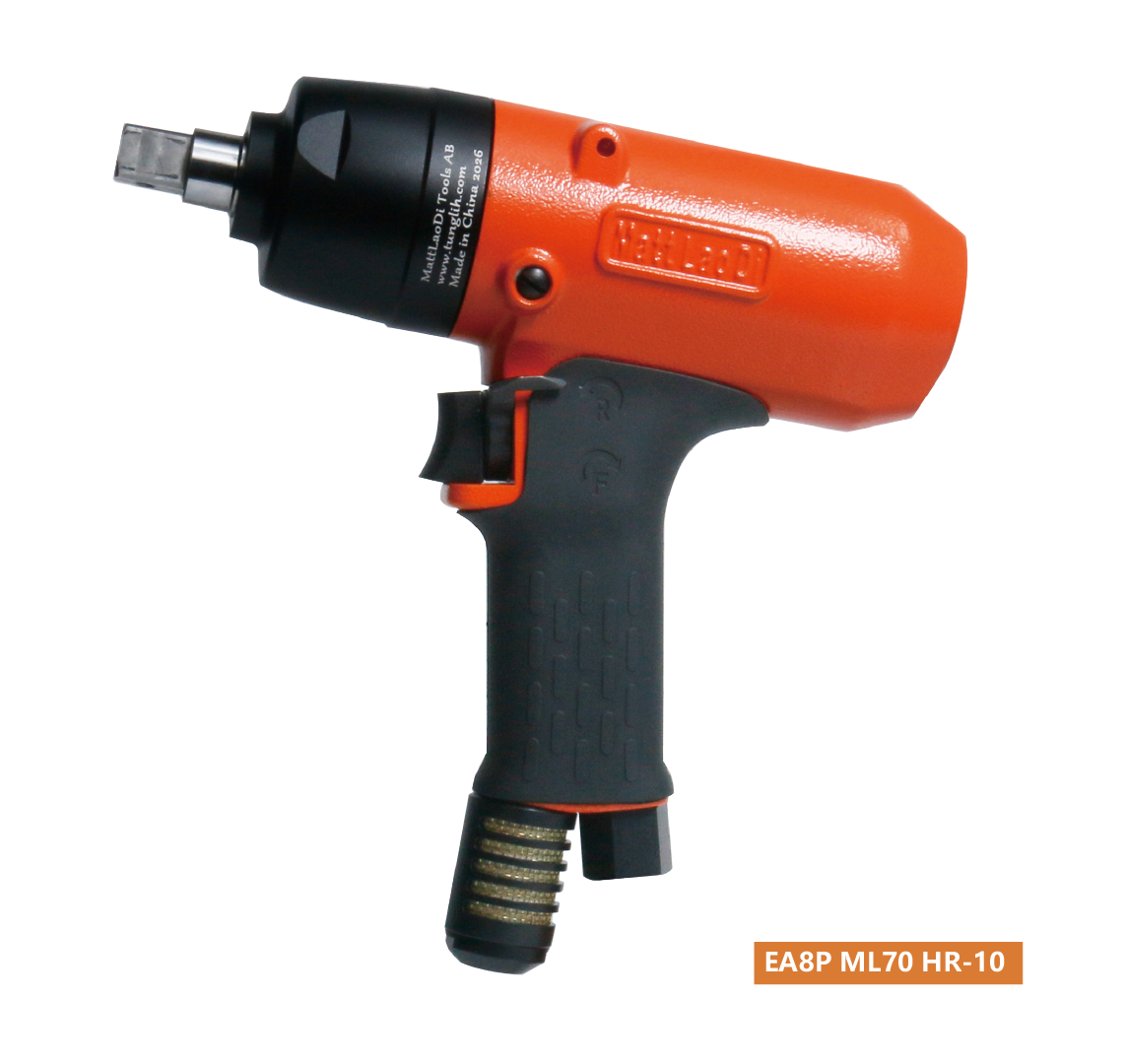

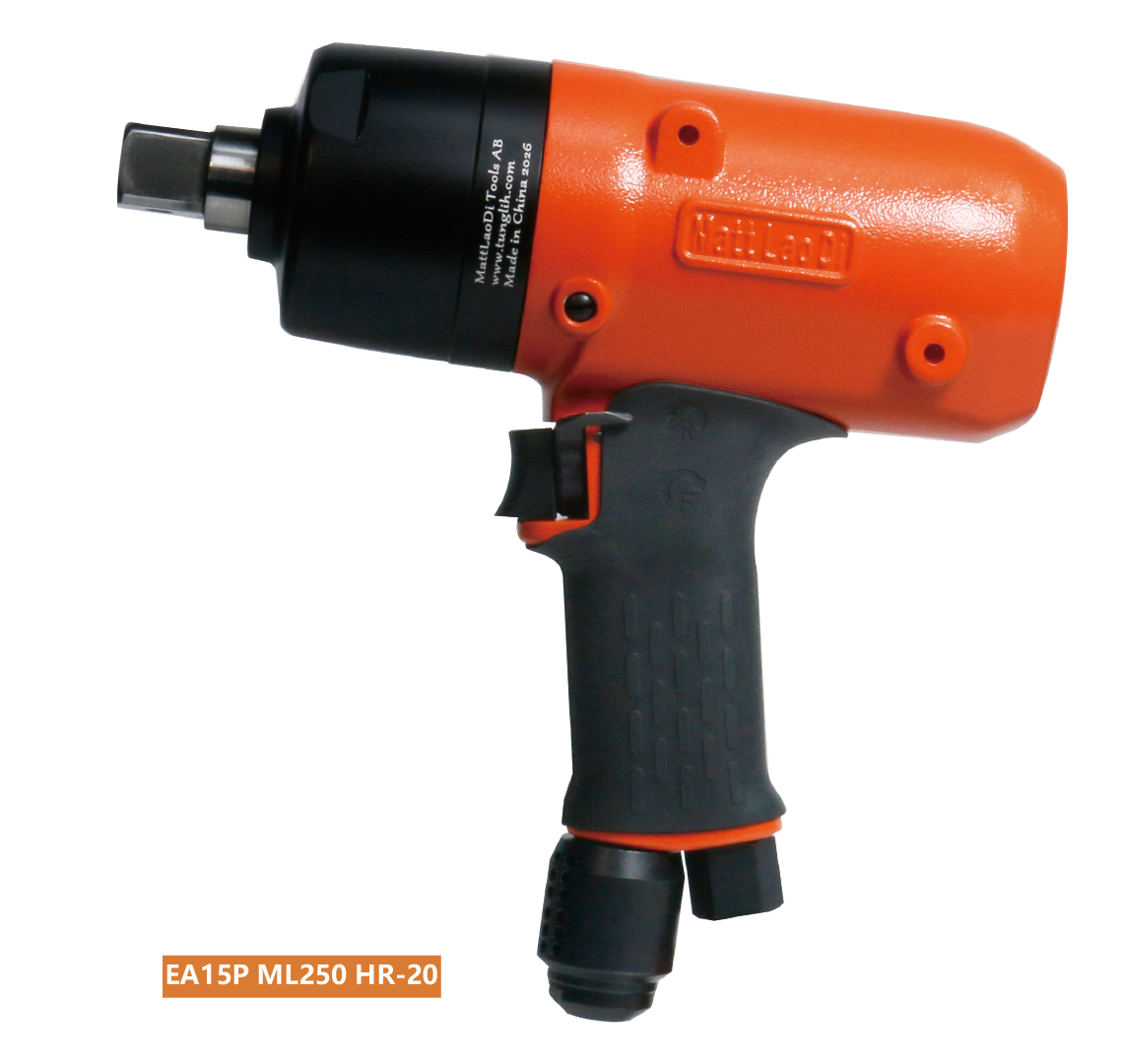

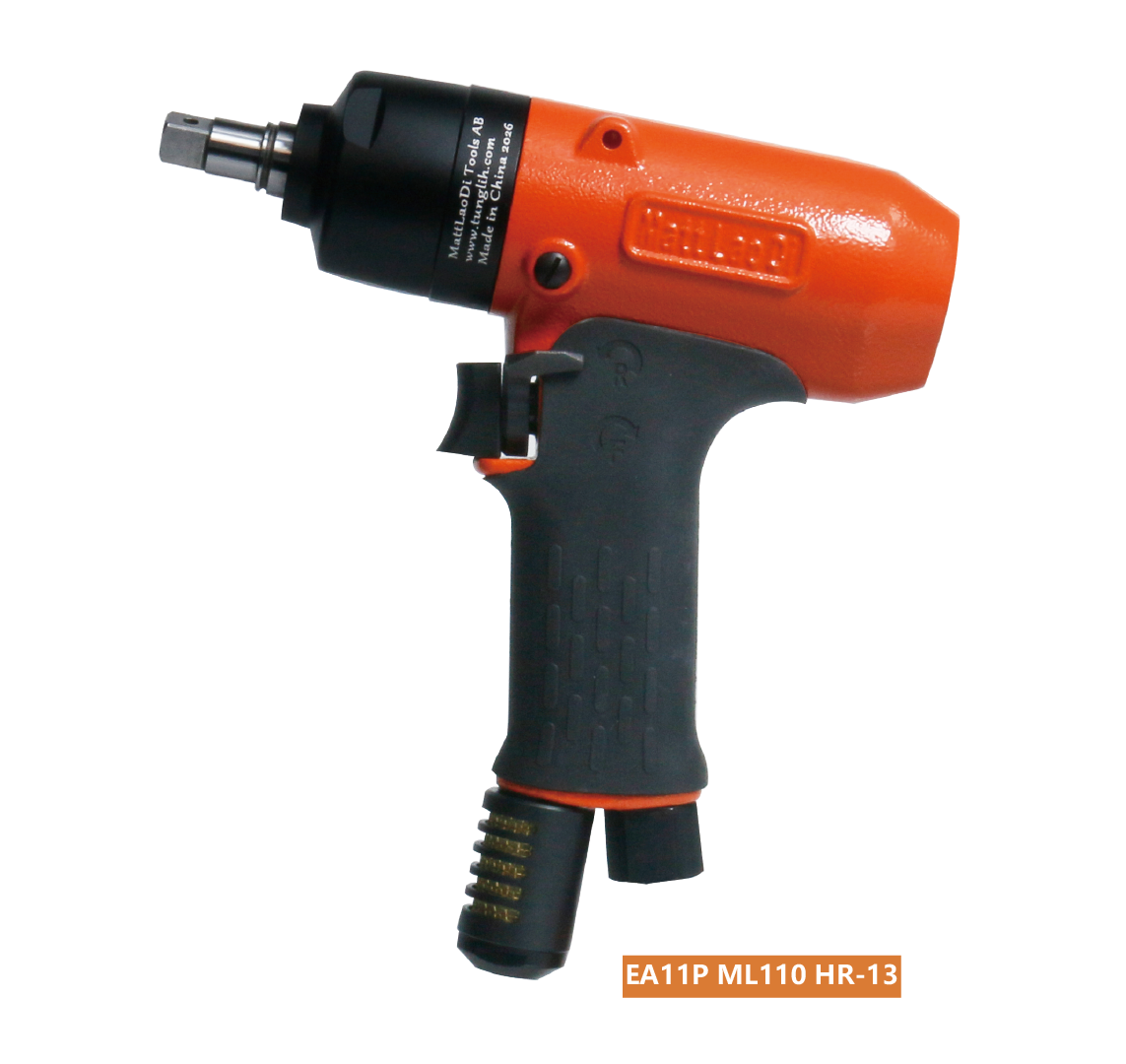

| Model number (pistol-powered) | EA6P ML32 HR-10 | EA7P ML55 HR-10 | EA8P ML70 HR-10 | EA9P ML80 HR-13 | EA11P ML110 HR-13 | EA13P ML150 HR-13 | EA15P ML250 HR-20 | EA19P ML450 HR-20 |
| Bolt Size (mm) | M6-M8 | M8-M10 | M10 | M10 | M12 | M12-M14 | M12-M16 | M16-M20 |
| Drive square head size (in) | 3/8 | 3/8 | 3/8 | 3/8 | 1/2 | 1/2 | 3/4 | 3/4 |
| Torque range (N.m) | 16-32 | 30-55 | 40-70 | 50-80 | 70-110 | 85-150 | 125-250 | 225-450 |
| Idle speed (r/min) | 8500 | 7200 | 6900 | 5200 | 5100 | 5300 | 4300 | 3300 |
| Weights (kg) | 0.9 | 1.2 | 1.2 | 1.5 | 1.7 | 2.3 | 3.1 | 4.2 |
| Lengths (mm) | 165 | 176 | 176 | 190 | 196 | 196 | 216 | 220 |
| Center Distance (mm) | 22 | 25 | 25 | 29 | 29 | 33.5 | 36.5 | 44 |
| Air consumption with load (cfm) | 15 | 19 | 19 | 23 | 25 | 32 | 45 | 49 |
| Inner diameter of trachea (mm) | 8 | 10 | 10 | 10 | 10 | 13 | 13 | 13 |
| Inlet Size (in) | 1/4 | 1/4 | 1/4 | 1/4 | 1/4 | 3/8 | 3/8 | 3/8 |
